20KN-1000KN 500KN Tensile Testing Machine UTM Hydraulic Tensile Testing Machine HD-B616-3

1.0 Sets
MOQ
20KN-1000KN 500KN Tensile Testing Machine UTM Hydraulic Tensile Testing Machine HD-B616-3
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Warranty: 1 YEAR
Customized support: OEM, ODM
Model Number: HD-B616-3
Power: Hydraulic, Hydraulic
Max. load: 1000KN
Load range: 20KN-1000KN
Load accuracy: ±1%
Elongation resolution: 0.01mm
Piston stroke: 250mm
Max. piston stroke speed: 50mm/min
Elongation accuracy: ±1%
Grundinformation
Model Number: HD-B616-3
Zahlung und Versand AGB
Packaging Details: mooden case
Supply Ability: 30 Set/Sets per Month
Produkt-Beschreibung
Products Description

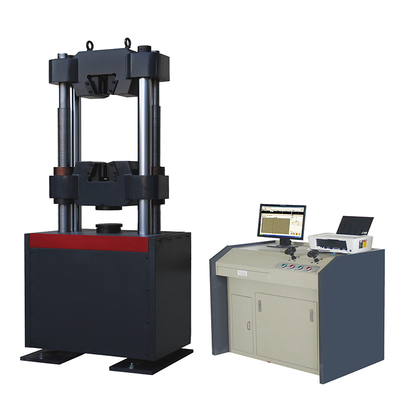

This machine with underneath type oil cylinder and four columns structure is mainly used to do tension, compression, bending, shearing test for metal materials, non-metal material. It is applied for fields of metallurgy, construction, light industry, aviation, aerospace, materials, universities,scientific research units, etc.


Applications

1. Tested sample: laminated materials, wood, leather, rubber & plastic, metal material, etc.
2. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
3. Deformation under defined load: Test deformation under defined load of tested sample
4. Load under defined deformation: Test load under defined deformation of tested sample
Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength,
compression strength, etc.
Details Images
Product Paramenters
Measure range
4%-100%F.S
Load cell brand
Oil pressure sensor, China brand
200T (30T, 60T, 100T are optional)
Load accuracy
1% F.S
Available tensile stroke
900mm
Available compression stroke
800mm
Test speed
50mm/min
Round sample diameter
Φ15-φ70mm
Flat sample thickness
0-50mm
Flat sample width
125mm
Horizontal test space
700mm
Compression diameter
Φ204mm
Operation control
Hydraulic
Display
PC
Curves display
Load- elongation, Elongation-time, Time-elongation, Stress-strain
Data display
Max. force, speed, sample information, strength etc…
Safety features
E-Stop
Over-load protection
Upper and lower limit switches
Load sensor with automatic retreat
